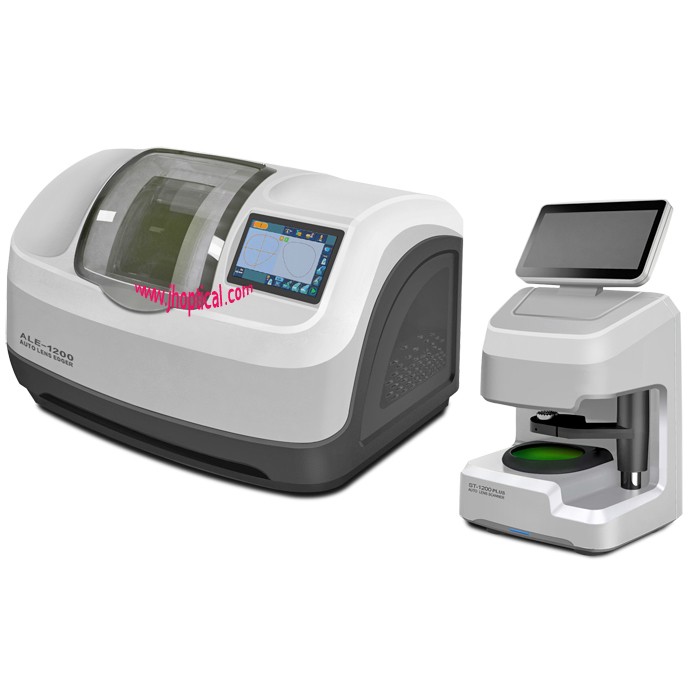

ALE-1200 3D Patternless Auto Lens Edger

CE Certified

Overview:

Introducing the ALE-1200 3D patternless auto lens edger, a state-of-the-art solution for precision lens edging. This advanced scanner features split type configuration, allowing for customizable belvelling positions and the option to add grooving functionality.

Key Features:
ALE-1200
1. Automatic initialization for quick setup and ease of use.
2. Three-dimensional probe for front and rear surface camber, ensuring accuracy in every edge.
3. Versatile wheel configuration including:
- Glass grinding wheel
- Resin rough wheel
- Bevel/flat edge grinding wheel
- Bevel/flat edge polishing wheel
4. Automatic clip with three clip pressure selections, catering to various lens materials.
5. Connects with water pump for circulating water and solenoid valve for efficient operation.
6. Grinding diameter capabilities:
- ≤80 mm
- Flat (No secured bevel) ≥19.00mm
- Bevel (No secured bevel) ≥19.00mm
7. Automatic cleaning of lens fixing system and grinding room for consistent performance.
8. Lens processing statistics for tracking productivity.
9. Designed for indoor use, ensuring optimal operation in controlled environments.
10. Dimension specifications:
- Length: 705mm
- Width: 465mm
- Height: 442mm
11. Weight: 65kg
12. Input Voltage: 220V-230V/50Hz, 110V-115V/60Hz
13. Machine power: 1500W
14. Noise level: 72db
15. Operating Temperature: 5℃~40℃
16. Relative humidity: 10% - 80%
17. Pump working voltage: 220V-230V/50Hz, 110V-115V/60Hz
18. Pump rated power: ≤150W
19. FUSE:
- 220V-230V/50HZ: 15A
- 110V-115V/60Hz: 25A

Scanner ST-1200
1) Dimension: 360mm*250mm*230mm
2) Weight: 5kg
3) Voltage: AC230V/115V 50/60HZ
4) Power: 60W
5) ADD adjustment range: 6mm
6) Screen tilt angle: 0~130o
7) Max storage: 500 sets
8) Touch screen: 7-inch capacitive screen
9) Quantity of connections with the main machine: 2 units.
