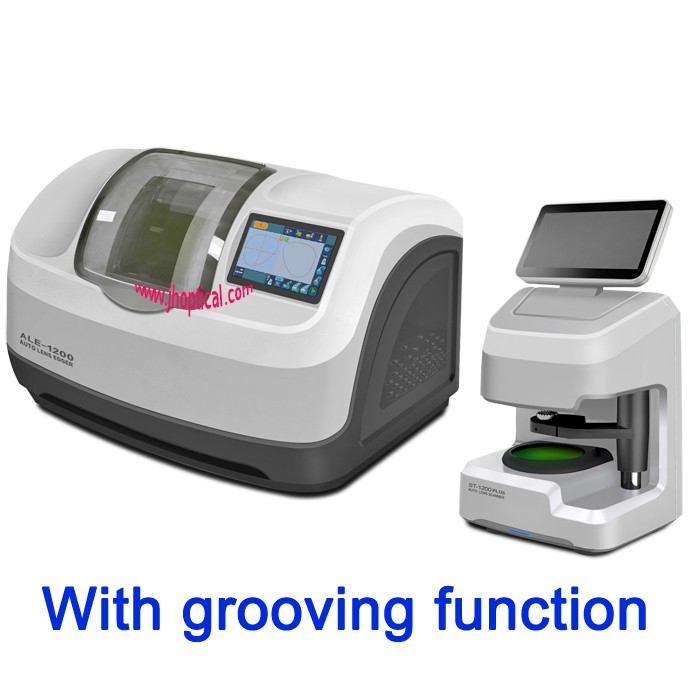

ALE-1200G 3D Patternless Auto Lens Edger with grooving function

CE Certified ALE-1200G 3D patternless auto lens edger with Grooving Function

Overview:
The ALE-1200G is a state-of-the-art 3D patternless auto lens edger designed for precision and efficiency in lens edging. Its scanner split type configuration offers:
1) Optional belvelling positions for customized edging.
2) A grooving function for added detail and precision.

Key Features:
ALE-1200G:
1. Automatic initialization for quick setup and operation.
2. Three-dimensional probe for front and rear surface camber measurement.
3. Versatile wheel configuration including:
- Glass grinding wheel
- Resin rough wheel
- Bevel/flat edge grinding wheel
- Bevel/flat edge polishing wheel
4. Automatic clip with three clip pressure selections to accommodate various lens materials.
5. Connects with water pump for circulating water and solenoid valve for efficient water management.
6. Grinding diameter capabilities:
- ≤80 mm
- Flat (No secured bevel) ≥19.00mm
- Bevel (No secured bevel) ≥19.00mm
7. Automatic cleaning of lens fixing system and grinding room for hygiene and maintenance.
8. Lens processing statistics for tracking productivity.
9. Designed for indoor use to ensure optimal performance in controlled environments.
10. Dimension specifications:
- Length: 705mm
- Width: 465mm
- Height: 442mm
11. Weight: 65kg for sturdy construction and reliability.
12. Input Voltage: 220V-230V/50Hz, 110V-115V/60Hz for worldwide compatibility.
13. Machine power: 1500W for high-performance operation.
14. Noise level: 72db for a quiet working environment.
15. Operating Temperature: 5℃~40℃ for versatility in various climates.
16. Relative humidity: 10% - 80% for operation in different environmental conditions.
17. Pump working voltage: 220V-230V/50Hz, 110V-115V/60Hz for consistent performance.
18. Pump rated power: ≤150W for efficient water circulation.
19. FUSE specifications:
- 220V-230V/50HZ: 15A
- 110V-115V/60Hz: 25A

Scanner ST-1200:
1) Dimension: 360mm*250mm*230mm for compact design and space efficiency.
2) Weight: 5kg for easy handling and mobility.
3) Voltage: AC230V/115V 50/60HZ for global use.
4) Power: 60W for low energy consumption.
5) ADD adjustment range: 6mm for precise lens measurement.
6) Screen tilt angle: 0~130o for optimal viewing and operation.
7) Max storage: 500 sets for extensive data retention.
8) Touch screen: 7-inch capacitive screen for intuitive control.
9) Quantity of connecting with the main machine: 2 units for expanded capabilities.
