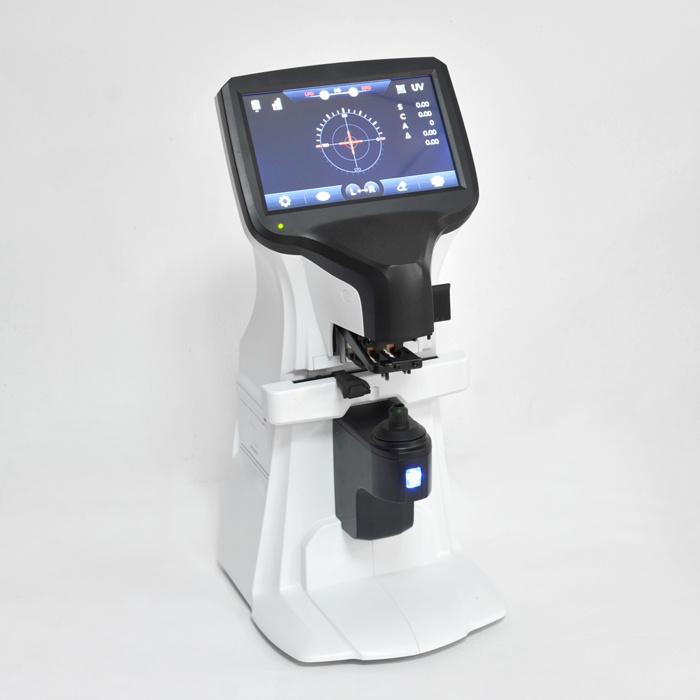

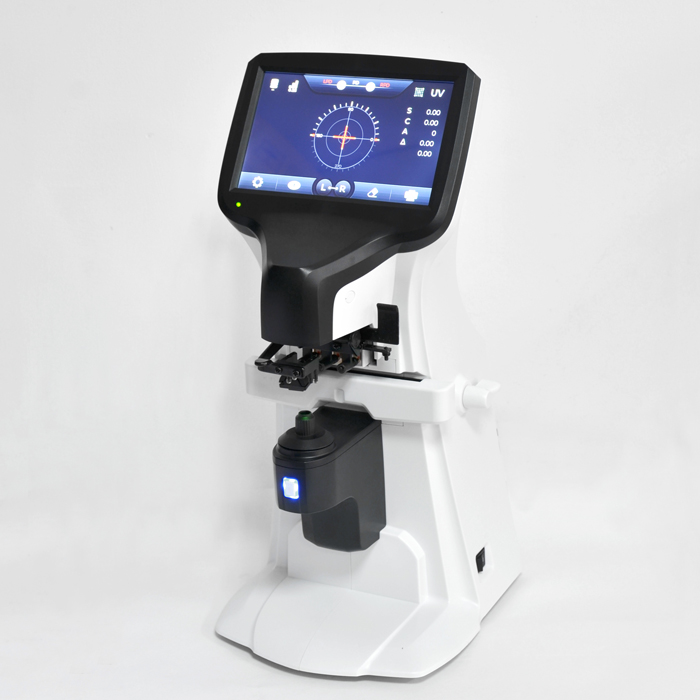

JD-2600D Auto lens meter, 7" LCD, UV green light and blue light measurement

Introducing the JD-2600D Auto Lens Meter

Experience precision and convenience with the JD-2600D, a state-of-the-art auto lens meter featuring a 7" LCD display, UV green light, and blue light measurement capabilities. This advanced device is designed to simplify the measurement process for a wide range of lenses, making it an indispensable tool for optical professionals.

Key Features:

• Sensitive Touch LCD Display: Effortlessly complete measurements with just a touch of the screen, making operation incredibly easy and convenient.
• Automatic Lens Recognition: Accurately measures single vision lenses, bifocal (trifocal) lenses, progressive lenses, and contact lenses with automatic recognition technology.
• High-Speed UV Measurement: Quickly assess UV green and blue light transmission by simply holding the lens to the sensor, with results displayed via a progress bar.

Measurement Range:

• Sphere: 0~±25D with 0.01/0.12/0.25D step options.
• Cylinder: 0~±10D with 0.01/0.12/0.25D step options.
• Axis: 0°~180° with 1° step increments.
• Add: 0~+10D with 0.01/0.12/0.25D step options.
• Prism Degree: 0~15△ with 0.01/0.12/0.25△ step options.

Measurement Modes:

• Cylinder: Offers +, +/-, and - modes.
• Prism: Includes X-Y and P-B modes.
• Contact Lens: Compatible with both soft and hard lenses.
• Measuring Mode: Features single, progressive, and automatic recognition modes.

Specifications:

• Lens Diameter: Φ20~108mm.
• PD: 40~90mm with 0.5mm step increments.
• Speed of Measurement: An impressive 0.1s.
• Display: 7" TFT LCD for clear readings.
• Printer: Built-in thermal printer for on-the-spot reports.
• Dimensions: 222(D) *161(W) *372(H)mm.
• Package: 515(H) *320(W) *390(D)mm.
• Weight: Approximately 6KG.
• Power Supply: 100~240V 50~60Hz for worldwide compatibility.
