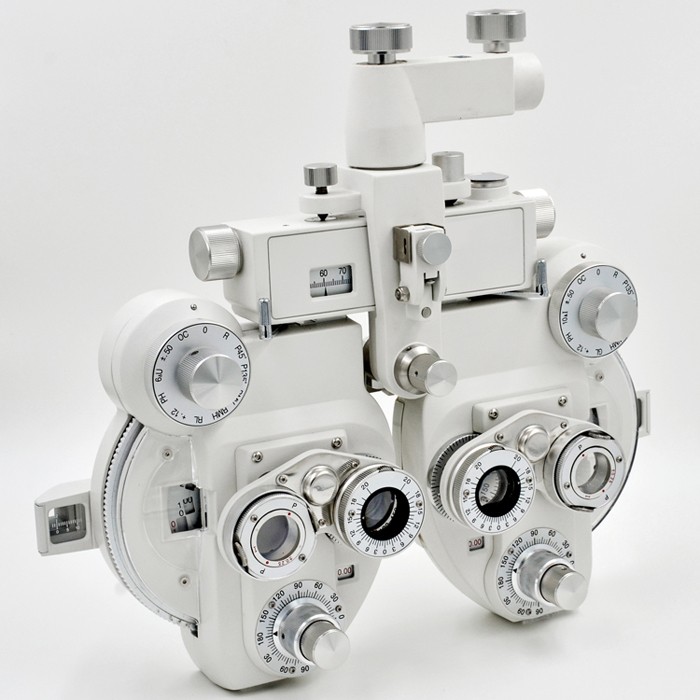

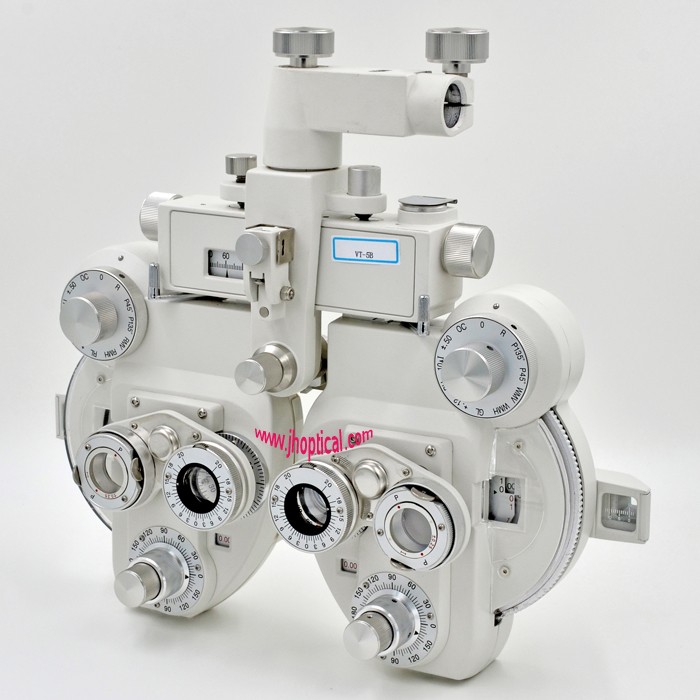

VT-5B(VT-10A) Manual Phoropter, copper fittings inside, very stable and economical
| Desc. | Length | Width | Height | NW. | GW. | CBM | CBM/5000 | CBM/6000 |
|---|---|---|---|---|---|---|---|---|
| 1pcs | 56 | 43 | 25 | 5 | 7 | 0.06 | 12 | 10 |
| Total | 5 | 7 | 0.06 | 12 | 10 |
CE
Important Note (Please Read Carefully):
This Phoropter comes with linear polarization by default (works with projectors only).
Need it to work with your polarized chart vision? We can supply circular polarization as an option – just let us know when ordering.
Color Options:

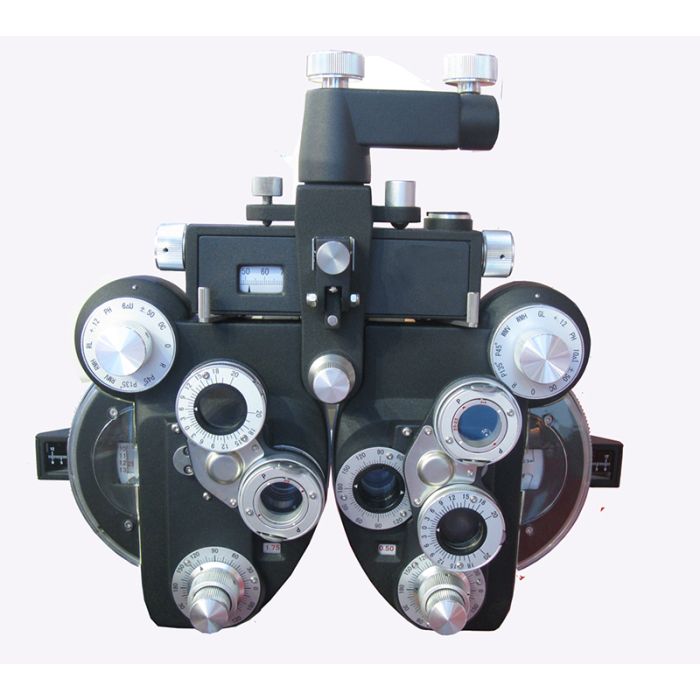

Choose from classic Black or clean White finishes to match your clinic or optical shop décor.
Product Overview:
■ Classic design, professional performance – delivers precise measurements with easy, convenient operation at an unbeatable value.
■ All lenses are anti-reflection coated for clearer, more accurate readings and reduced glare.
■ Premium Manus cross-cylinder lenses ensure reliable astigmatism testing.
■ New leveling mechanism for quick, stable setup on any surface.
■ Fingertip sphere power control – smooth, precise adjustments every time.
■ Unique convergence system for accurate near-vision testing.
■ Wide range of auxiliary lenses to handle any exam scenario.
■ Precision-machined to the finest tolerances for long-lasting accuracy.
■ Ideal for optical shops, hospital ophthalmology departments, schools, and corporate vision screening programs.
■ Two color choices to fit your workspace style.
| Technical Specifications: | |
| Sphere Power Range: | +16.75D to –19.00D, with minimum increments of 0.25D or 0.12D |
| (When using +0.12D auxiliary lens or optional ±0.12D lens) | |
| +26.75D to –29.00D (with optional ±10.00D lens) | |
| Cylinder Power Range: | 0 to –6.00D, with minimum increments of 0.25D or 0.12D (with auxiliary lens) |
| 0 to –8.00D (with –2.00D auxiliary lens) | |
| Astigmatic Axis Scale: | 0 to 180° in 5° steps |
| Cross Cylinder: | ±0.25D, reversal type (synchronized with astigmatic axis) |
| Rotary Prism: | 0 to 20∆D in 1∆D steps |
| Interpupillary Adjustment: | 48mm to 80mm in 1mm steps (right and left synchronized) |
| Forehead Rest Adjustment: | 16mm backward and forward |
|
Convergence: (2mm each for right and left inward) |
Optical axes aligned at a distance of 400mm from the corneal vertexes |
| Interpupillary Distance for Convergence: | 57mm to 80mm |
| Corneal Distance Device: | 2mm forward and 5mm backward from standard plane; with scale |
| Effective Field of View: | 19mm |
| Weight: | 5 kg – lightweight and easy to mount on any exam stand |
