SKD-001 Worth 4-Dot Projector Kit

Enhance Your Diagnostic Precision with the Worth 4-Dot Projector Kit

Unlock the full potential of your optometry and ophthalmology practice with the SKD-001 Worth 4-Dot Projector Kit, a professional-grade tool designed for accurate binocular vision assessment, suppression detection, and fusion capability evaluation.

🔑 Key Features & Benefits

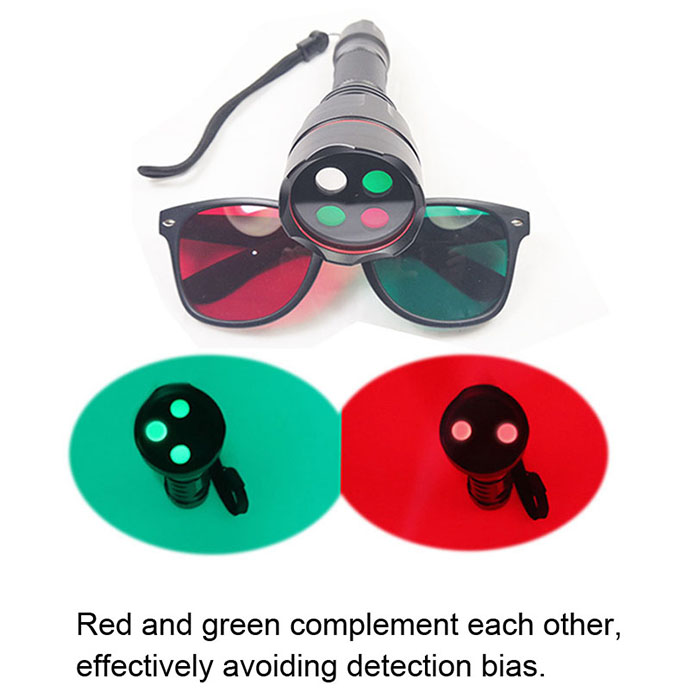

• High-Quality Optics: Utilizes pure red and green complementary colors to minimize detection bias and ensure reliable test outcomes.

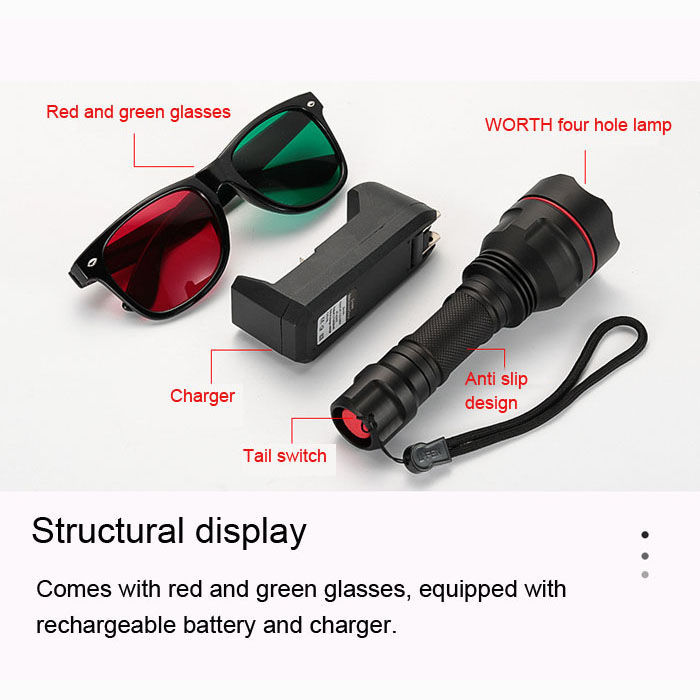

• Complete Ready-to-Use Kit: Includes a specialized Worth four-hole lamp, red/green glasses, a rechargeable battery, and a charger for immediate use.
• Durable Construction: Made from premium materials with meticulous craftsmanship and an anti-slip design for a secure grip.
• Long-Lasting Power: Equipped with a high-capacity 18650 rechargeable lithium battery (4800mAh, 3.7V) for up to 500 charging cycles and a 2-3 year service life.

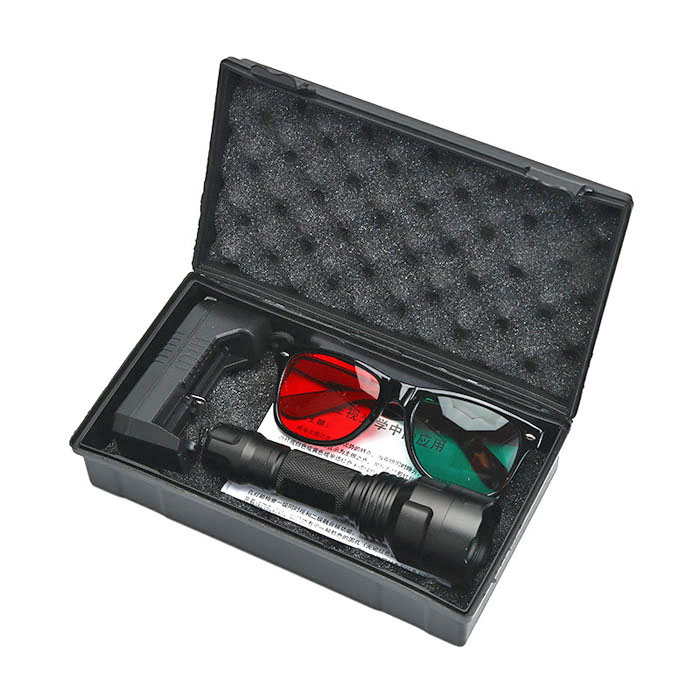

• Portable & Organized: Securely packed in a protective black carrying case (217mm x 124mm x 60mm) with internal foam padding for easy transport and storage.

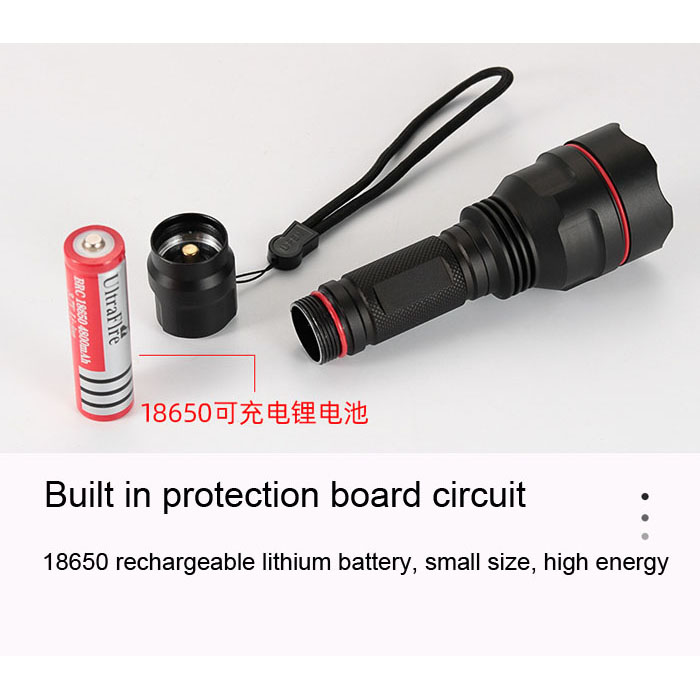

• Safety Assured: The battery is fitted with a built-in protection board circuit for safe and dependable operation.

📊 Product Specifications

Product Name:

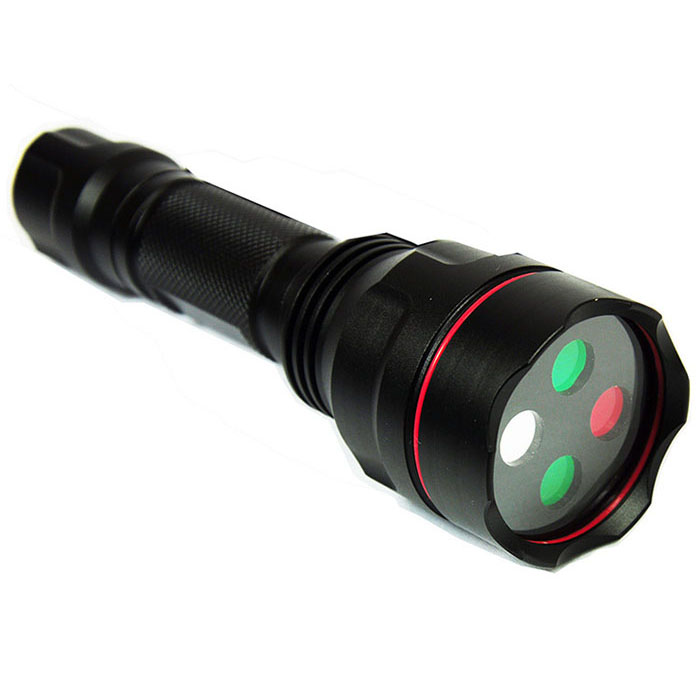

Worth Four Hole Lamp (Four Point Light)

Product Weight:

290g (Lightweight and easy to handle)

Battery Type:

18650 Rechargeable Lithium-Ion

Application Scope:

Effectively avoids detection bias in visual function tests.

Package Dimensions:

217 x 124 x 60 mm

🩺 Inspection Method & Analysis

Set up the Worth test light in a semi-dark room at the required distance. The subject should wear the red/green glasses (Right eye: Red, Left eye: Green) and observe the visual indicators.

Visual Function Interpretation:

• P1: Simultaneous and fused vision in both eyes (Normal).
• P2: Left eye suppression.
• P3: Right eye suppression.
• P4: Simultaneous vision in both eyes, but abnormal fusion image.
• P5: Simultaneous vision in both eyes, but abnormal fusion image.

📦 What's in the Box

• WORTH Four Hole Test Lamp
• Red & Green Glasses
• 18650 Rechargeable Battery
• Battery Charger
• Protective Storage Case
